1. Metal Turning
-
CNC Turning - Diameter up to 550mm, Length up to 1500mm
-
Face Turning ( external, internal ) - Diameter up to 650mm, Length up to 3000mm
- Carousel - Diameter 900mm, Height 800mm
- Between Centres Turning, Length 3000m
|
7. Welding
- MAG Argon Arc Welding AGA MIX 18(82% Argon, 18% CO2)
- WIG Aluminium-Welding (Argon)
- Flame-Welding
- Point-Welding
|
2. Milling
- Classic - max. 1000x400x300mm
- Toothwheel in Modul m=6
3. Drilling
- Bench Drill, max. Diameter 20mm
- Radial Drill, max. Diameter 60mm
- Coordinate Horizontal Drilling Machine WHN9, max. workpiece dimension 1200 x 1200 x 900mm
- CNC Drilling Machine WXR 50, max. workpiece dimension 800 x 600
- Co-Operation CNC Horizontal Drilling Machine WHQ 130CNC, max. workpiece dimension 2300 x 1800 x 3500mm, max. weight 8tons
|
8. Surfacing
- Abrasive Cleaning ( Sand, max. 500x270x12000mm)
- Painting in RAL Colors
- Pulverised Painting ( Co-operaton)
- Zinc-Covering ( Co-operation)
- Zinc Dipping
- Electrogalvanizing
9. Pressing

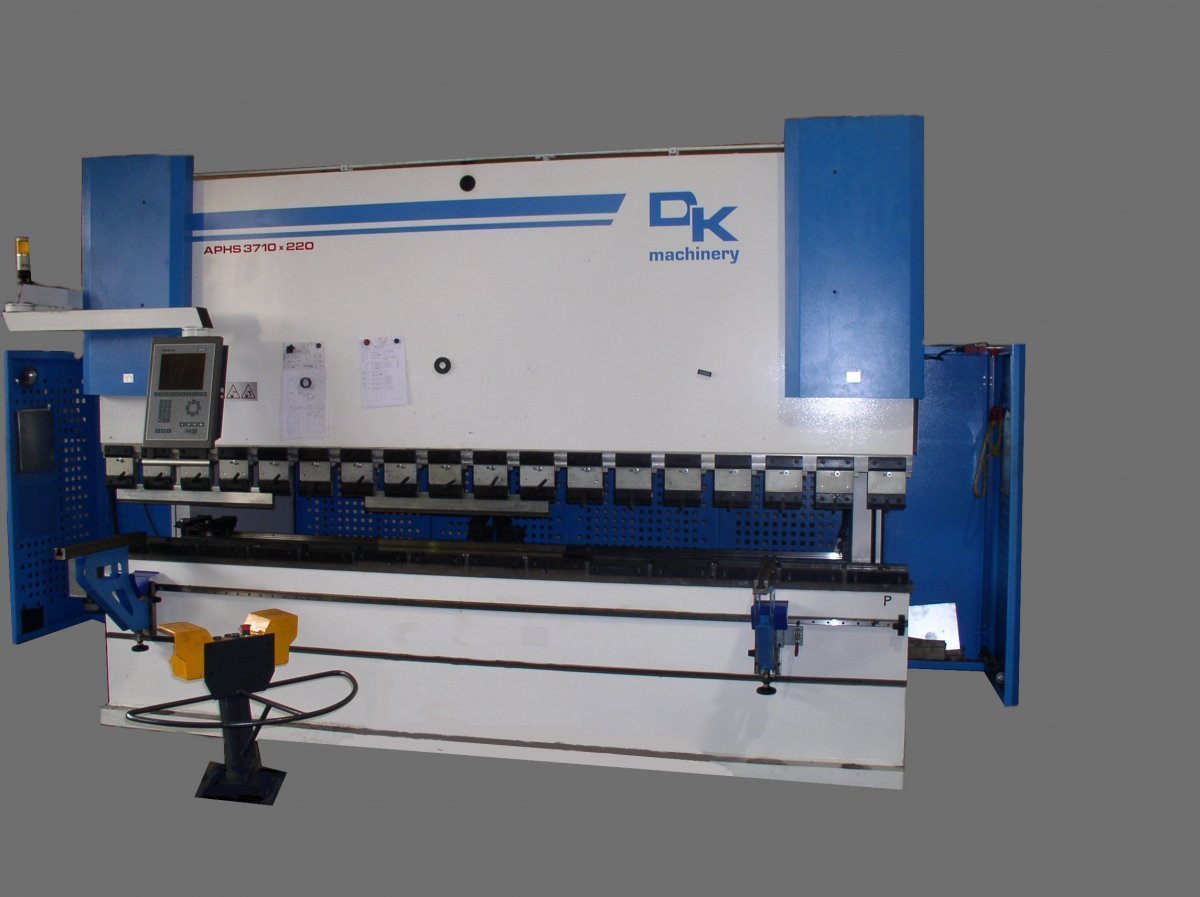

- Press Brake APHS 3710 /220 t - Bending of Steel Plates and Flat Steel
- Crank- Press 63T
- Bending
- Pressing of varios Shapes
- Pressing of Holes ( from Diameter 10 mm to 80 mm)
- Pressing of Grooves
|
4. Materialcutting
- CNC Plasmacut Omnicut 4000, work surface 6000x3000mm, 1x Plasma HPR 260xD, 2x Flame Torch up to 200mm thickness, 1x Drilling Unit

- Radial-Saw, max. Diameter 200mm
- Band-Saw max. Diameter 300mm
- Sheet metal cutting (Shears, max. sheet thickness 16mm
- Flame-Cutting, max. sheet thickness 100mm
- Plasma Arc Cutting max. sheet thickness 6mm
- Profile Steel cutting - all Method
|
10. Smithing and Locksmithing
11. Handling a Materials
- Crane
- Bridge Crane up to 3,5 tons
- Car Crane up to 8 tons
- High - Lift ( Fork Lift) up to 5 tons
- Truck up to 2,8 tons
|
5. Grinding
- Cylindrical grinding (internal, external), max. workpiece Diameter 200 mm, Length 500 mm
- Flat grinding, max. workpiece 300 x 350 x 900mm
6. Grooving
- max.Length 200 mm, max. Diameter 300 mm
|
|
| |
|
